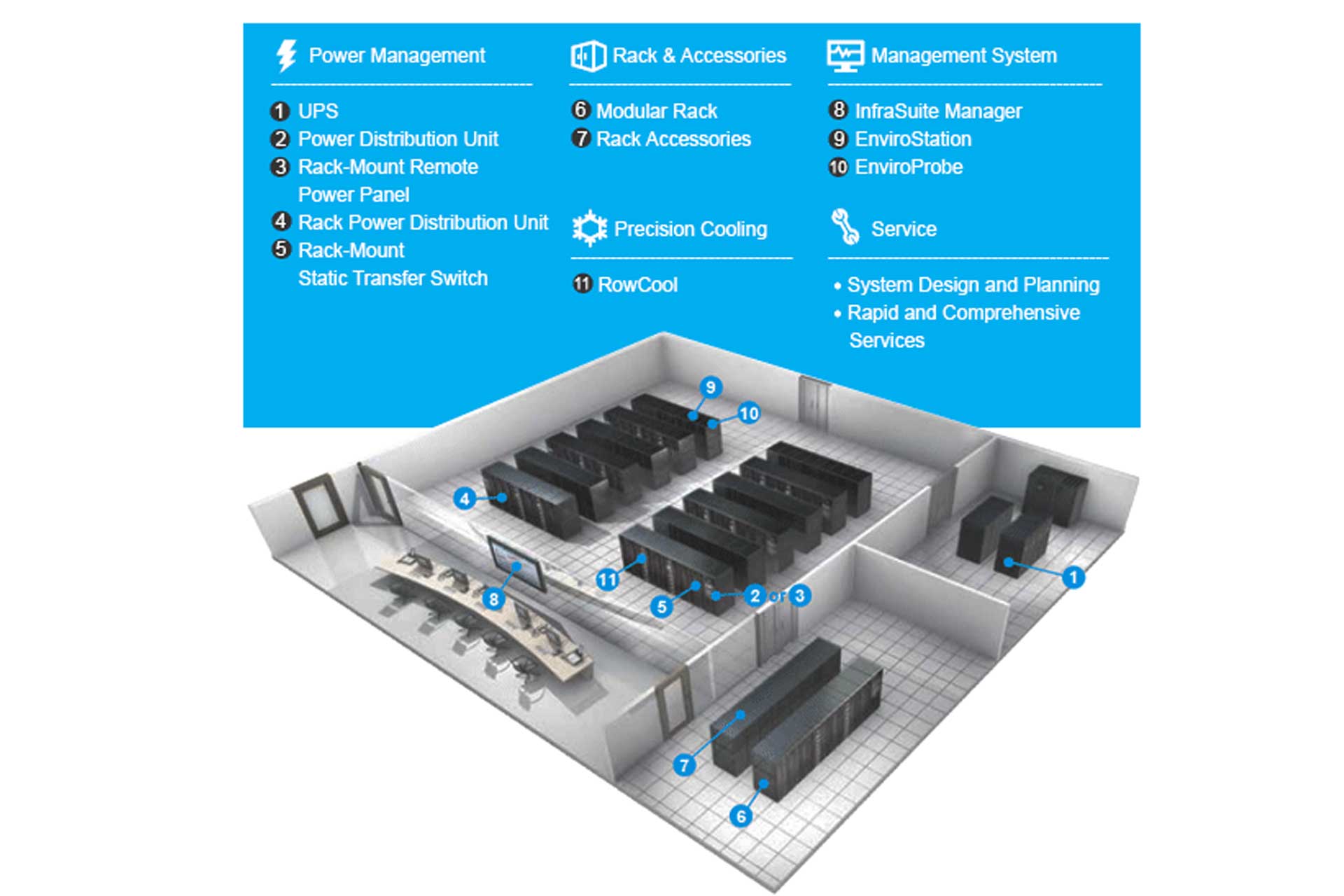

A modern data center is much more than rows of servers. Behind the scenes, a carefully designed ecosystem of power systems, racks, cooling solutions, monitoring tools, and services works together to ensure 24/7 availability, efficiency, and reliability. The image above provides a clear overview of how these critical components are arranged and connected within a data center environment.
Let’s break it down section by section.
1. Power Management: The Backbone of Reliability ⚡
Power continuity is non-negotiable in data centers. The image highlights a complete power management chain, designed to prevent downtime and protect sensitive IT equipment.
Key components include:
-
UPS (Uninterruptible Power Supply)
Acts as the first line of defense against power outages, providing instant backup power. -
Power Distribution Unit (PDU)
Distributes electricity from the UPS to multiple systems efficiently and safely. -
Rack-Mount Remote Power Panel
Enables localized power control and monitoring within server rows. -
Rack Power Distribution Unit (Rack PDU)
Delivers power directly to servers inside each rack while enabling load monitoring. -
Rack-Mount Static Transfer Switch (STS)
Automatically switches between power sources to maintain uninterrupted operations.
Together, these elements ensure stable, redundant, and manageable power delivery across the facility.
2. Rack & Accessories: Organized and Scalable Infrastructure 🗄️
Efficient hardware organization is critical for airflow, maintenance, and future expansion.
-
Modular Racks
Designed for scalability, allowing data centers to grow without major redesigns. -
Rack Accessories
Include cable managers, blanking panels, and mounting hardware that improve airflow and reduce clutter.
This modular approach supports high-density deployments while keeping the data center clean and service-friendly.
3. Precision Cooling: Keeping Systems at Optimal Temperatures ❄️
Heat is one of the biggest threats to data center performance. The image highlights Row-Based Precision Cooling (RowCool) systems.
-
RowCool Units
Positioned close to server racks, they remove heat at the source, improving cooling efficiency and reducing energy consumption.
Precision cooling ensures consistent temperatures, protects hardware, and supports higher computing densities.
4. Management System: Real-Time Visibility and Control 📊
Modern data centers rely heavily on intelligent monitoring and management tools.
-
InfraSuite Manager
A centralized platform for monitoring power, cooling, and infrastructure health. -
EnviroStation
Collects environmental data such as temperature and humidity. -
EnviroProbe
Provides localized environmental sensing inside racks and aisles.
These tools give operators real-time insights, enabling faster decision-making and proactive issue resolution.
5. Services: Design, Planning, and Rapid Support 🛠️
Technology alone isn’t enough—expert services complete the ecosystem.
-
System Design and Planning
Ensures optimal layout, redundancy, and energy efficiency from day one. -
Rapid and Comprehensive Services
Cover installation, maintenance, and emergency support to minimize downtime.
Professional services help data centers stay resilient, compliant, and future-ready.
Conclusion: A Fully Integrated Data Center Ecosystem
The image illustrates how power management, modular racks, precision cooling, intelligent monitoring, and expert services come together to form a resilient data center infrastructure. Each component plays a vital role, but it’s their integration that ensures high availability, operational efficiency, and scalability.
In an era of cloud computing, AI workloads, and always-on digital services, such a holistic data center design is no longer optional—it’s essential.
